Double intermediate drive Fully inclined bed double-head CNC Lathe Machine

LeioMt Double-Head CNC Lathe

High precision Roller linear guide High precision ball screw Imported precision bearing Servo hydraulic turret Optional 12 Station live tooling Tool setting instrument is optional Main shaft synchronous belt drive

Key parameters

LeioMt Double-Head CNC Lathe Stck72/95-500 Stck120/160/220-600 Key parameters

CAPACITY	Unit	STCK72
Distance between centers	mm	650	850	1070
Chuck size	inck	8
Max. swing over bed	mm	560
Max. swing over cross slide	mm	280
Linear guide rail width	mm	45/45
TRAVELS
X-Axis Rapid Traverse	m/min	20
Z-Axis Rapid Traverse	m/min	20
X axis travel	mm	270
Z axis travel	mm	610	830	1070
MAIN SPINDLE
Max. Spindle Speed	rpm	4200
Max. Spindle Power	kw	11
Spindle nose	–	A2-6
bar capacity	mm	52

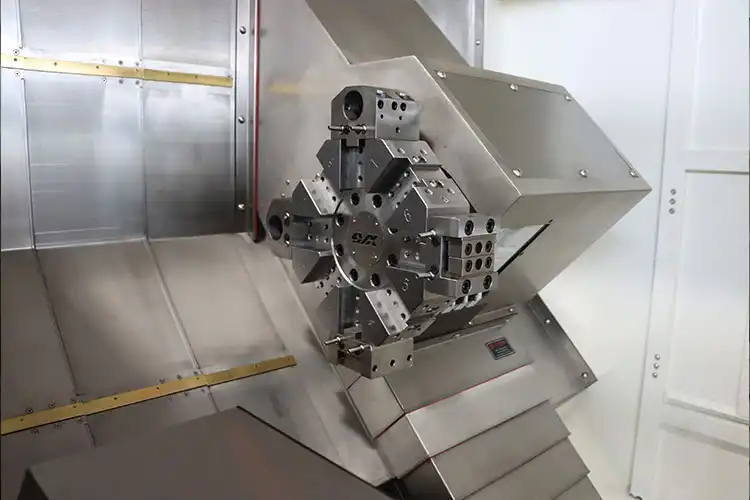

TURRET
No. of tool station	–	12
Turret Type	–	12-station hydraulic servo turret

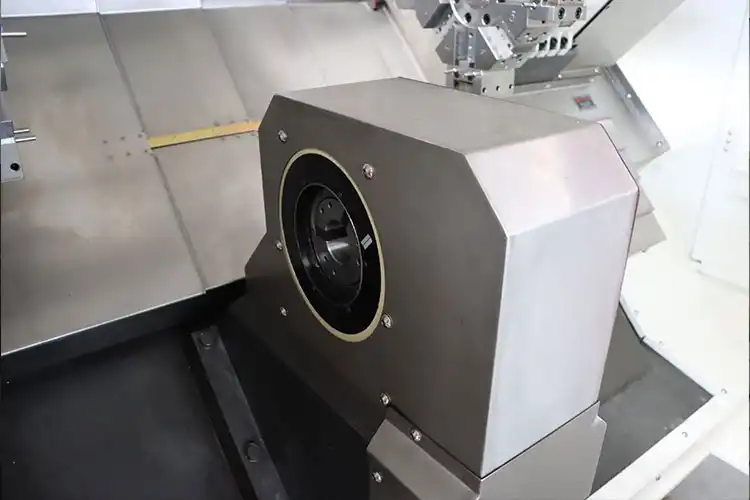

tailstock
quill diameter	mm	80
quill travel	mm	80
tailstock Travel	mm	500	700	950
tailstock taper	–	MT5
DIMENSIONS
Packing size	m	3.35	3.6	4
Width	m	2	2	2
Height	m	2.3	2.3	2.3
NET Weight	kg	4000	4300	4800

Product features

Single-drive flat-bed double-head CNC Lathe Machine

Espond to different parts

Only replace the collet and fixtures.

Simultaneous processing

2 times efficiency，μ class coaxiality. Indepant row cutter with telescopic tool, effectivey slove

Special central spindle

The special structure central spindle can respond to high speed and cutting rigid.

Dual-channel controller

Easily respond to synchronization processing.

Factory high htability automation

Internal & external truss optional.

Flexible and multi-purpose design

Supports a variety of accessories and function expansions to adapt to different operating needs and enhance equipment flexibility.

Design and Technology

E10 Electric Wheel Loader Design and Technology

Advanced battery technology

The efficient 76.8V battery system provides stable power output to ensure long-term continuous operation.

Efficient hydraulic system

The optimized hydraulic operating system improves work efficiency and reduces energy consumption.

Sturdy structure

The equipment is made of high-strength materials to ensure stability and safety for long-term operation.

After-sales Service

Comprehensive After-Sales Support You Can Rely On

12 months Warranty

A 12-month worldwide warranty to ensure the quality and reliability of your equipment.

24/7 Support

Our team offers around-the-clock online technical support to address any issues.

Spare Parts Replacement

Adequate spare parts supply with free core component replacement, ensuring long-term efficient operation.

Fast Response

We are committed to responding quickly to resolve problems and minimize equipment downtime.

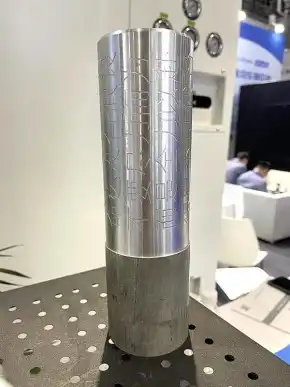

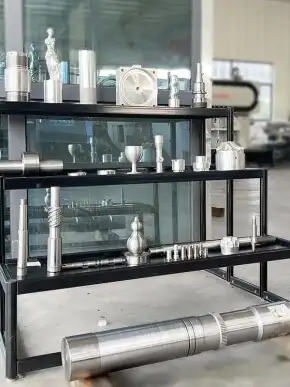

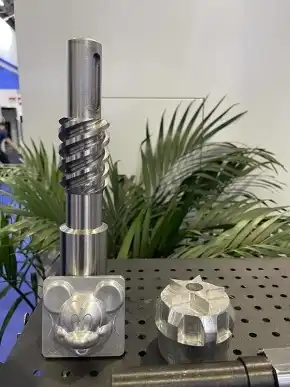

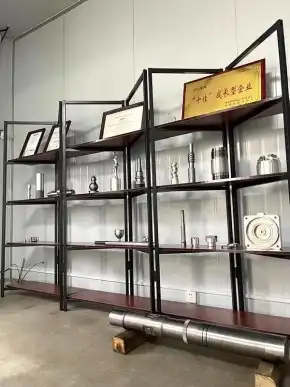

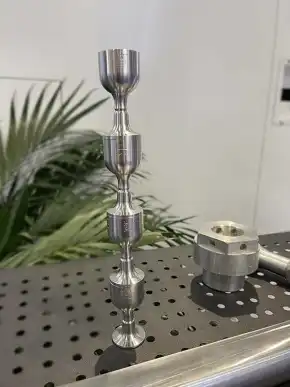

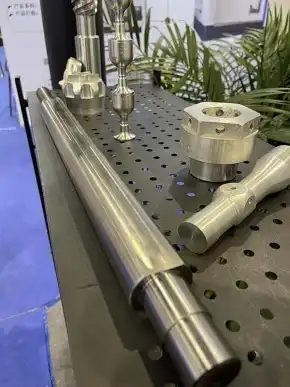

Production samples

Single-drive flat-bed double-head CNC Lathe Machine

“LeioMt’s Double-Head CNC Lathe is ideal for our construction projects. The machine is easy to operate and very durable. We are extremely satisfied with the entire cooperation.”

Customizable Attachments

Versatile Solutions for Every Job

Blanc-ELE’s electric wheel loaders offer strong expandability, allowing you to choose from various attachments based on your specific operational needs. Options include extra-large coal buckets, log forks, grain buckets, grass forks, and more. These versatile tools ensure that your equipment performs efficiently in various work environments.
